What are the different types of shut off valves commonly used in plumbing systems?
There are several types of
shut off valves commonly used in plumbing systems, each with its own characteristics and applications.
1.Ball Valve:
Description: A ball valve uses a rotating ball with a bore to control the flow of water. When the handle is turned perpendicular to the pipe, the valve is closed; when parallel, it is open.
Advantages: Quick and easy to turn on and off, durable, suitable for a wide range of applications.

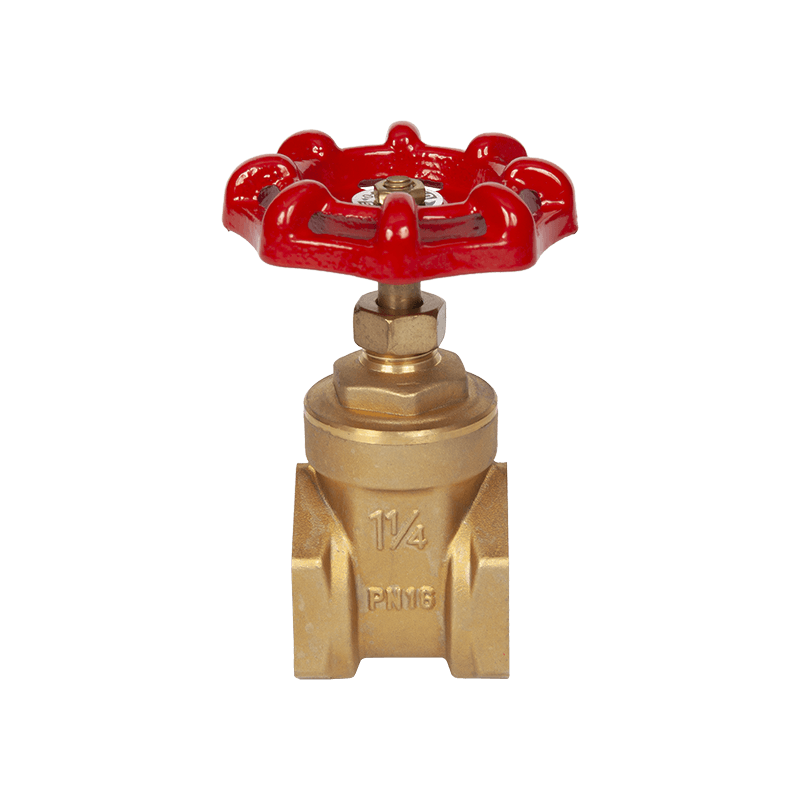

2.Gate Valve:
Description: Gate valves control flow by raising or lowering a gate (a flat or wedge-shaped disc) inside the valve body. They provide a full flow path when open.
Advantages: Good for on/off control, low pressure drop when fully open, but not suitable for frequent operation.

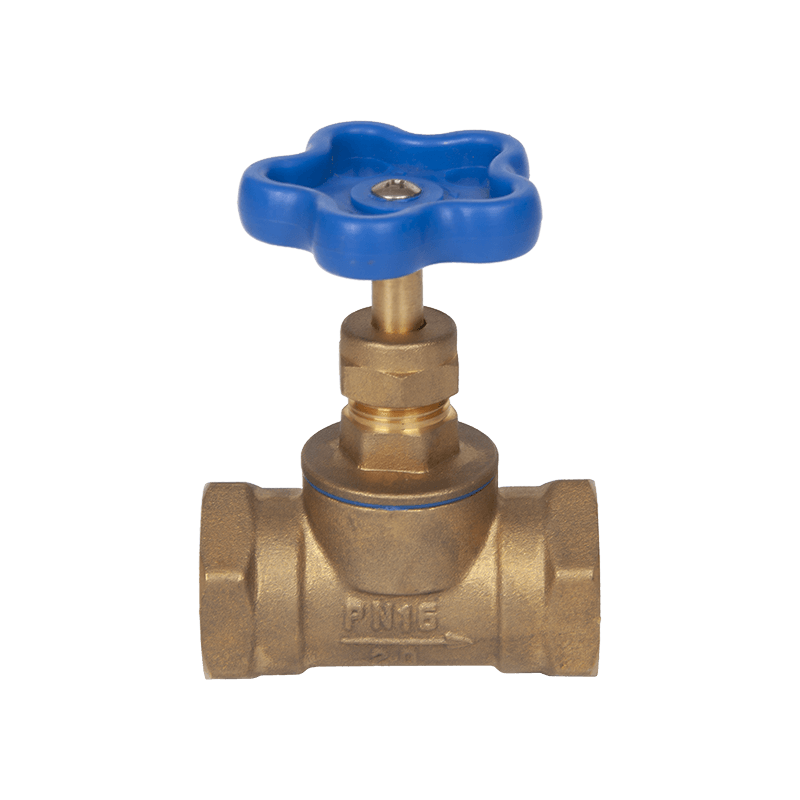

3.Globe Valve:
Description: Globe valves have a globe-shaped body and a movable plug or disc that regulates flow. They are suitable for throttling or regulating flow.
Advantages: Precise flow control, good for throttling applications, but can cause higher pressure drops.
4.Butterfly Valve:
Description: Butterfly valves use a rotating disc to control flow. The disc is mounted on a shaft and is positioned in the center of the pipe.
Advantages: Quick operation, lightweight, and suitable for large pipe diameters. Can be used for both on/off and throttling applications.
5.Check Valve:
Description: Check valves allow flow in one direction only and prevent backflow. They typically have a swing, lift, or diaphragm mechanism.
Advantages: Prevents backflow, ensures one-way flow, common in sump pump discharge lines.
6.Stop Valve (Angle Valve):
Description: Stop valves, also known as angle valves, have an L-shaped body and are commonly used to shut off water to a specific fixture, like a sink or toilet.
Advantages: Compact design, ideal for fixture shut-off, available in various materials.
What are the key considerations when installing shut off valves in a plumbing system?
Installing
shut off valves in a plumbing system is a crucial step in providing control over water flow, enabling maintenance, repairs, and individual fixture isolation. Here are key considerations to keep in mind when installing shut-off valves:
Choose strategic locations for shut-off valves, considering accessibility and convenience. Common locations include near fixtures (e.g., under sinks, behind toilets) and at branch points in the plumbing system.
Select the appropriate type of shut-off valve based on the application. Common types include ball valves, gate valves, and compression valves. Ball valves are often preferred for their durability and ease of operation.
Ensure that the material of the
shut off valve is compatible with the plumbing system and the type of water being conveyed. Common materials include brass, stainless steel, and plastic.
Choose the right size of shut-off valve based on the pipe size in the plumbing system. The valve size should match or be compatible with the pipe diameter to ensure efficient flow control.
Consider the type of connection the shut-off valve uses. Compression, sweat (solder), and threaded connections are common. Choose the one that aligns with your plumbing system and installation preferences.
Quarter-turn shut-off valves, such as ball valves, are preferred for their simplicity and quick operation. Ensure that the chosen valve allows for easy and efficient on/off control with a quarter turn.
Install shut-off valves in easily accessible locations, and consider labeling them for quick identification. This is especially important in larger plumbing systems to facilitate efficient maintenance and troubleshooting.
